If you have opened up a Teverun Fighter Supreme Ultra 2.0 or a Teverun Fighter Supreme 7260R V6, you have probably noticed the wiring looks different from older scooters. That is because these machines run the new Teverun 2.0 electrical system, a smarter, cleaner, CAN bus based platform that ties the display, the controllers, and the battery together on a shared communication line. This guide breaks down how that system works, what each connector does, what the I-Button is for, and how to read the J1 control pinout, all in plain language.
Short version: the Teverun 2.0 system replaces a tangle of individual signal wires with a shared digital bus, so fewer wires do more work, everything talks to everything, and diagnosing a fault gets a lot more logical.
Quick Answer: What Is the Teverun 2.0 System?
The Teverun 2.0 system is the electrical architecture used on the newest Teverun scooters, including the Fighter Supreme Ultra 2.0 and the Fighter Supreme 7260R V6. Its defining feature is a CAN bus, a two-wire digital communication network that lets the LCM control module, the front and rear motor controllers, and the battery all share data over the same pair of wires. The system is switched on with an I-Button ignition, uses sealed waterproof connectors throughout, and centralizes control through a single main harness connector known as J1.
What Is a CAN Bus, and Why Does It Matter?
CAN stands for Controller Area Network. It is the same type of communication bus used in modern cars. Instead of running a separate wire for every signal between every part, a CAN bus uses just two wires, CAN High and CAN Low, that every module taps into. Each module, the display, the controllers, and the battery management system, can send and receive messages on that shared line.
The practical benefits are real. There are fewer wires overall, which means fewer connectors to fail and a cleaner, more reliable harness. Modules can report their own status, so the system knows which part is talking and which has gone quiet. And because it is a digital network, front and rear controllers can stay perfectly coordinated, which matters a great deal on a dual motor machine.
The I-Button: Your Ignition Key
The I-Button is the round ignition contact on the Teverun 2.0 system. Touch the matching key to it and the scooter wakes up and powers on, the same idea as turning a key in a car. It is a simple, weather resistant way to switch the whole system on and off without an exposed mechanical keyswitch that can corrode or jam.
When you engage the I-Button, it signals the system to come alive: the battery wakes from sleep, the control module boots, and the controllers get ready to drive. When you switch off, the system powers down cleanly. If your scooter will not wake, the I-Button contact and the battery sleep switch are two of the first things worth checking.
The Main Components on the Diagram
The Teverun 2.0 connection diagram shows a handful of major building blocks, each with a clear job:
| Pin | Function | Wire Color |
|---|---|---|
| 1 | Throttle hall signal | Red |
| 2 | ACC (accessory / ignition on) | Yellow |
| 3 | CAN High (CANH / RX) | Green |
| 4 | CAN Low (CANL / TX) | Blue |
| 5 | B+ (battery positive / power in) | Gray |
| 6 | Brake signal | Brown |
| 7 | Sub-control detect | Pink |
| 8 | GND (ground) | Black |
Reading it top to bottom: pin 1 carries your throttle input as a hall signal, pin 2 is the accessory line that comes alive when the system is switched on, pins 3 and 4 are the two CAN bus wires that let everything communicate, pin 5 feeds power in, pin 6 tells the system you are braking, pin 7 detects the sub-control unit, and pin 8 is the common ground. Notice that a single 8-pin plug handles power, ground, both rider controls, and the entire communication bus, that is the elegance of the 2.0 design.
How to Read the Wiring Diagram Like a Pro

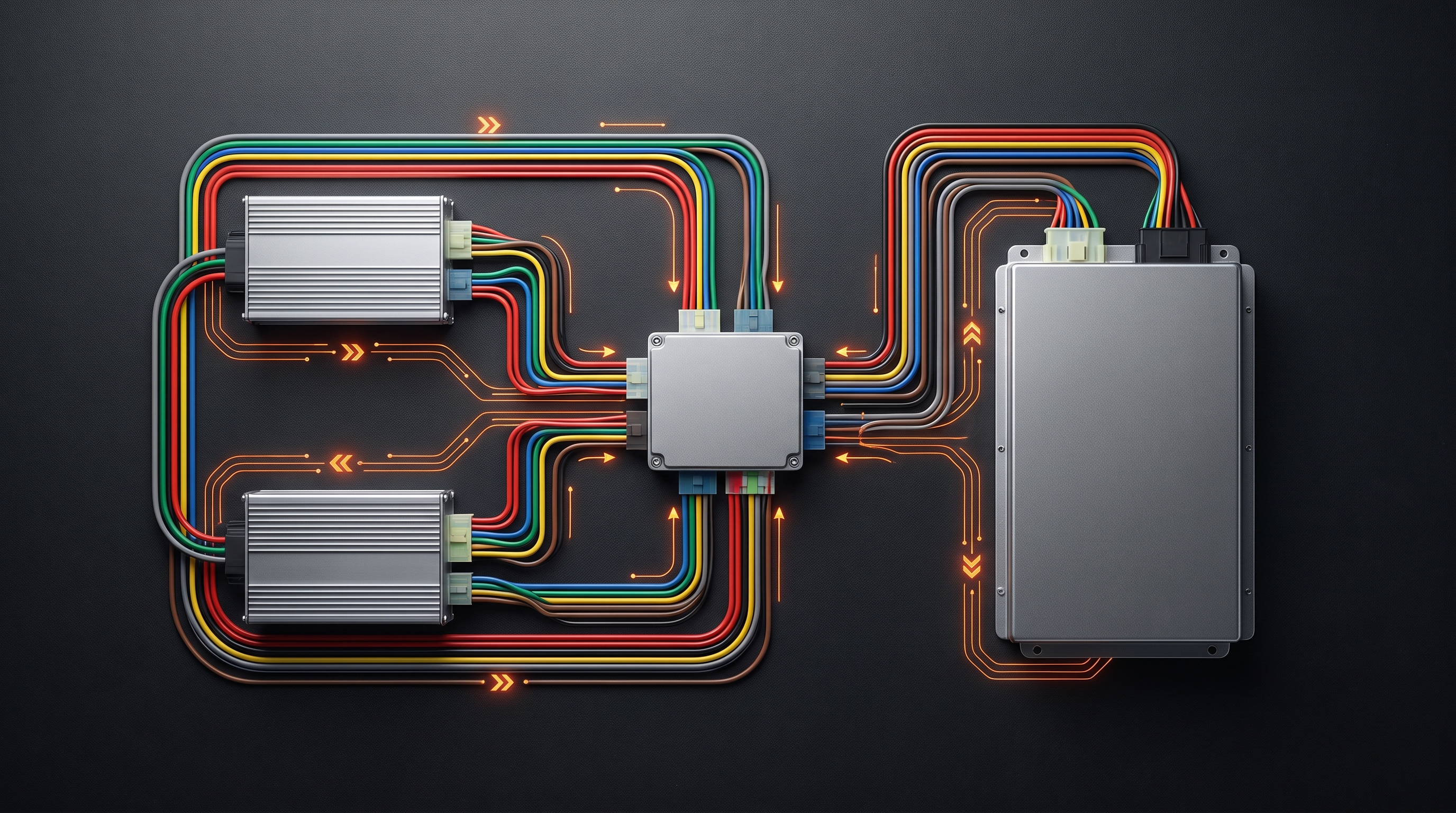

When you look at the full Teverun 2.0 connection diagram, trace it in this order and it will make sense quickly. Start at the battery, which is the power source. Follow the heavy XT60 power lines to the controllers. Then find the thin two-wire CAN bus, the CAN High and CAN Low pair, and notice how it links the control module, both controllers, and the battery on one shared loop. Finally, trace the signal connectors, the JST and SM plugs, out to the throttle, brakes, lights, and the motor hall sensors. Once you separate the picture into power lines, the CAN bus, and signal lines, the whole diagram becomes readable.
Basic Troubleshooting With This Knowledge
Understanding the layout turns guesswork into logic. A few honest pointers:
- Scooter will not power on: check the I-Button contact and the battery sleep activation switch first. If the battery is asleep or the ignition is not making contact, nothing downstream will wake.
- Display on but no drive, or one motor out: this often points to a controller or its connection, since the controllers are what actually drive the motors. On a dual motor scooter, a single dead wheel usually isolates to one controller or one waterproof motor plug.
- Intermittent faults or communication errors: because so much rides on the CAN bus, a loose or corroded connector on the CAN High or CAN Low line can cause modules to drop off. Reseating connectors is a sensible first step.
Always work on a powered-down scooter, and if you are ever unsure, contact us before disconnecting anything. Getting a photo to our team first can save you a lot of trouble.
Which Scooters Use the Teverun 2.0 System?
The Teverun 2.0 system with the I-Button and CAN bus architecture is found on the newest generation of Teverun performance scooters, including the Teverun Fighter Supreme Ultra 2.0 and the Teverun Fighter Supreme 7260R V6. Both share the same core wiring logic, the same connector families, and the same J1 control layout, which is exactly why understanding one helps you understand the other.
Where to Get Genuine Teverun Parts and Support
VoroMotors carries the Teverun lineup and stocks genuine parts and connectors for the 2.0 system. Because we know these machines inside and out, our team can match the exact connector, controller, or harness piece you need and walk you through the wiring if you are troubleshooting. For the full picture on how we back every machine, read our guide on VoroMotors support, warranty, and repairs.
Frequently Asked Questions
What is the Teverun 2.0 system?
It is the electrical architecture on the newest Teverun scooters, including the Fighter Supreme Ultra 2.0 and 7260R V6. It uses a CAN bus so the display, controllers, and battery all communicate over one shared pair of wires, an I-Button ignition, and sealed waterproof connectors throughout.
What is the I-Button on a Teverun scooter?
The I-Button is the ignition contact. Touching the matching key to it powers the scooter on, similar to turning a car key. It is a weather resistant alternative to an exposed mechanical keyswitch.
What is a CAN bus and why does the Teverun 2.0 use one?
CAN bus stands for Controller Area Network, a two-wire digital communication line used in cars. It lets the control module, controllers, and battery share data over the same wires, which means fewer wires, better reliability, and perfectly coordinated front and rear motors.
What does the J1 connector do?
J1 is the main 8-pin control harness plug. It carries power (pin 5) and ground (pin 8), the throttle signal (pin 1), brake signal (pin 6), the accessory line (pin 2), both CAN bus wires (pins 3 and 4), and the sub-control detect line (pin 7).
My Teverun 2.0 will not turn on. Where do I start?
Start with the I-Button contact and the battery sleep activation switch. If the battery is asleep or the ignition is not making contact, the rest of the system cannot wake. If those check out, contact our team with a photo before disconnecting anything.
Do the Ultra 2.0 and 7260R V6 use the same wiring?
They share the same Teverun 2.0 core: the same CAN bus logic, the same connector families, and the same J1 control layout. This is why the same diagram and pinout apply to both.
