21 Inch vs 19 Inch Front Wheel on an Electric Dirt Bike: The Actual Geometry

Ask anyone who chose one electric dirt bike over another in this class why they did it, and "it has a proper 21 inch front" comes up constantly. It is usually stated as though it settles the argument. It is a real advantage, but it is a smaller and more specific advantage than most people think, and it costs you something in return.

So let us actually do the arithmetic, because nobody else seems to.

What the sizes really mean

A tyre marked 80/100-21 has an 80 mm section width, a sidewall 100 percent of that width, so 80 mm tall, mounted on a 21 inch rim. Work the whole thing through and the outside diameter is about 693 mm. The same tyre on a 19 inch rim comes out around 643 mm.

Two inches of extra rim diameter gives you exactly one inch of extra radius. That one inch is the whole of the advantage, and everything below follows from it.

Attack angle, measured rather than asserted

When a wheel meets a square edged obstacle, what matters is the line from the contact point to the axle. The steeper that line sits above horizontal, the more of the force pushes the wheel up and over, and the less of it pushes straight back into the obstacle. Bigger wheel, steeper line, which is why the 21 inch column below is the higher one.

Where the one inch actually earns its keep

The attack angle is the part you can calculate. Three effects you cannot put in a table matter at least as much.

Ground clearance at the axle. The front axle sits one inch higher. Over ruts, logs and rocky step ups, one inch of axle height is the difference between clearing something and clouting it.

Resistance to deflection. A larger wheel carries its mass further from the axle, which resists being knocked off line. That is a mechanism we are inferring rather than a figure we can source. In loose sand, gravel and chop the front wanders less and tucks less readily. This is the effect riders describe as the bike feeling planted, and in our experience it is what they actually notice first, more than the attack angle.

Tyre availability. This one is unglamorous and genuinely important. A 21 inch front is the standard full size enduro and motocross size, so essentially every serious off road front tyre is made in it. Nineteen inch front options are a much shorter list. If you care about running a specific compound for your terrain, the 21 opens the catalogue.

What you give up

There is a trade, and a comparison that does not mention it is a sales pitch.

A bigger front wheel has more rotational inertia, so it resists changing direction as well as resisting deflection. Turn in is slower and the bike takes marginally more effort to flick from side to side. On a groomed motocross track or hard packed trail, where you are changing direction constantly and there is nothing much to deflect off, the 19 inch front is genuinely the better tool. It is also slightly lighter and it lowers the front of the bike a touch, which shorter riders sometimes prefer.

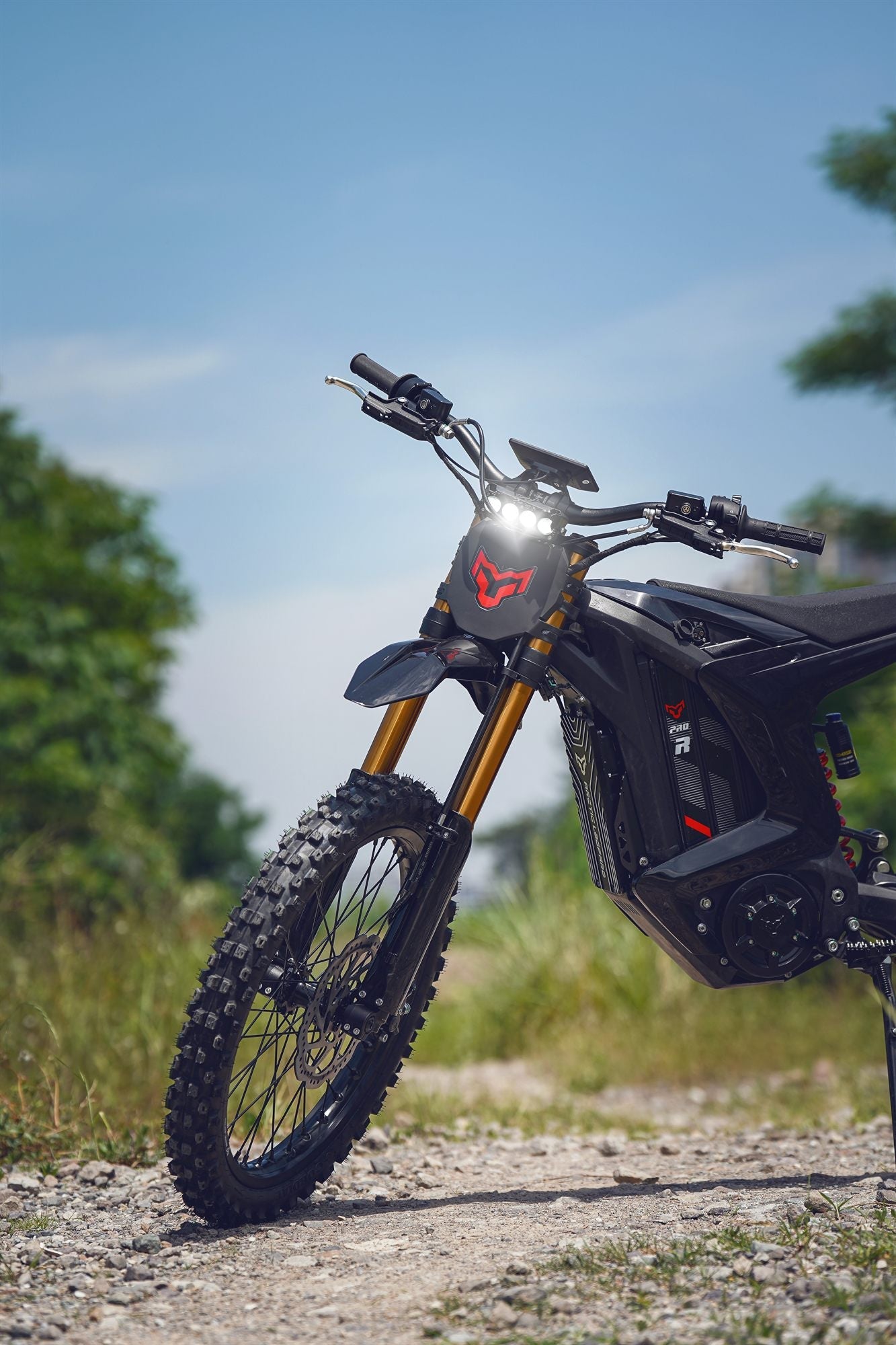

Which of our bikes runs what

Both run the same 100/90-18 rear, so the rear is not part of this decision at all. The front is the whole difference. If you want the longer argument across price, weight, driveline and carrying capacity, we put both bikes head to head in our Ultra Bee versus XE Pro R comparison, and we stock both.
